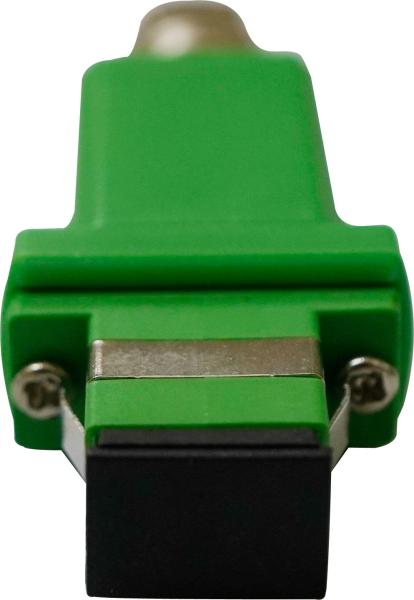

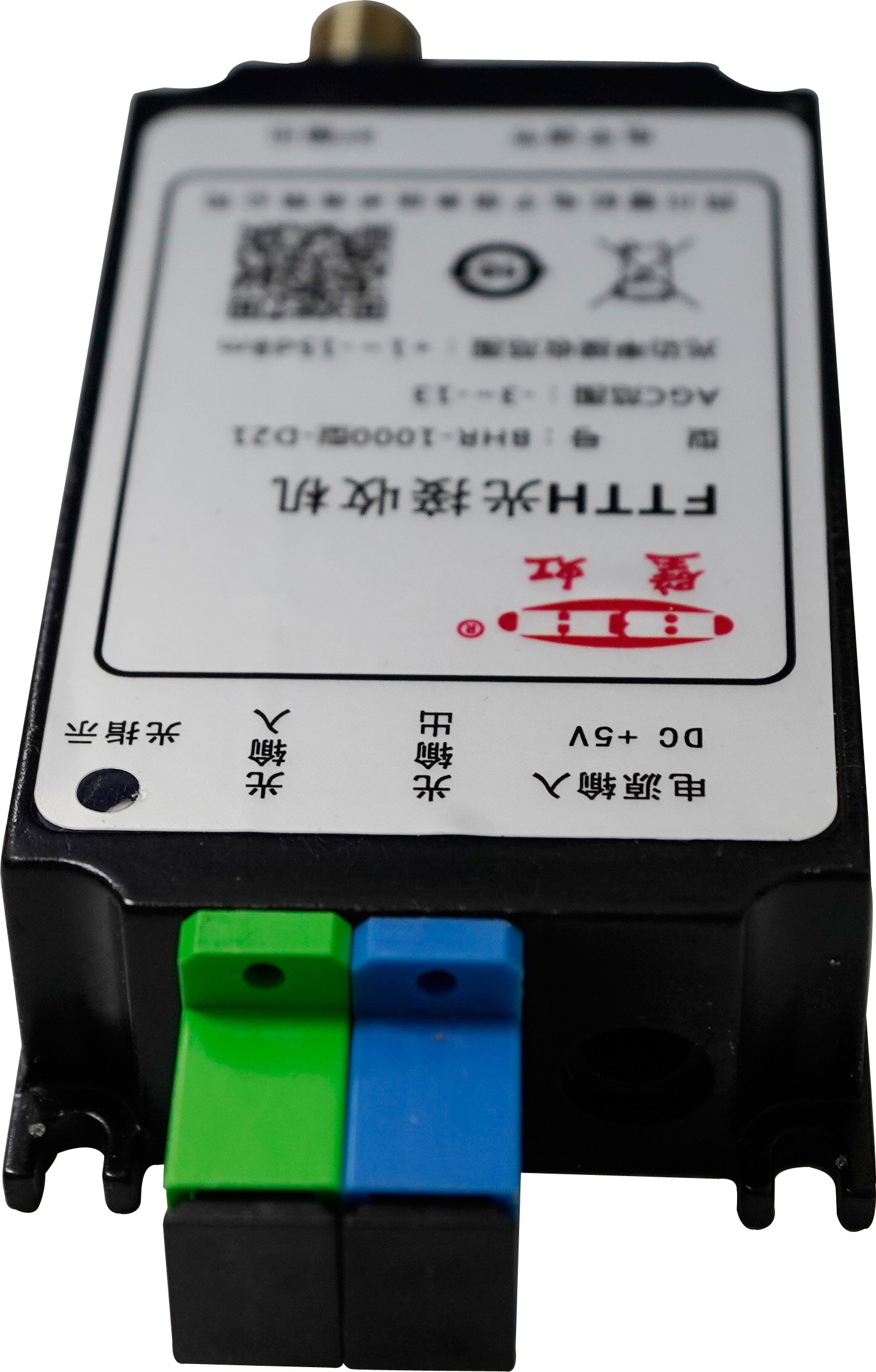

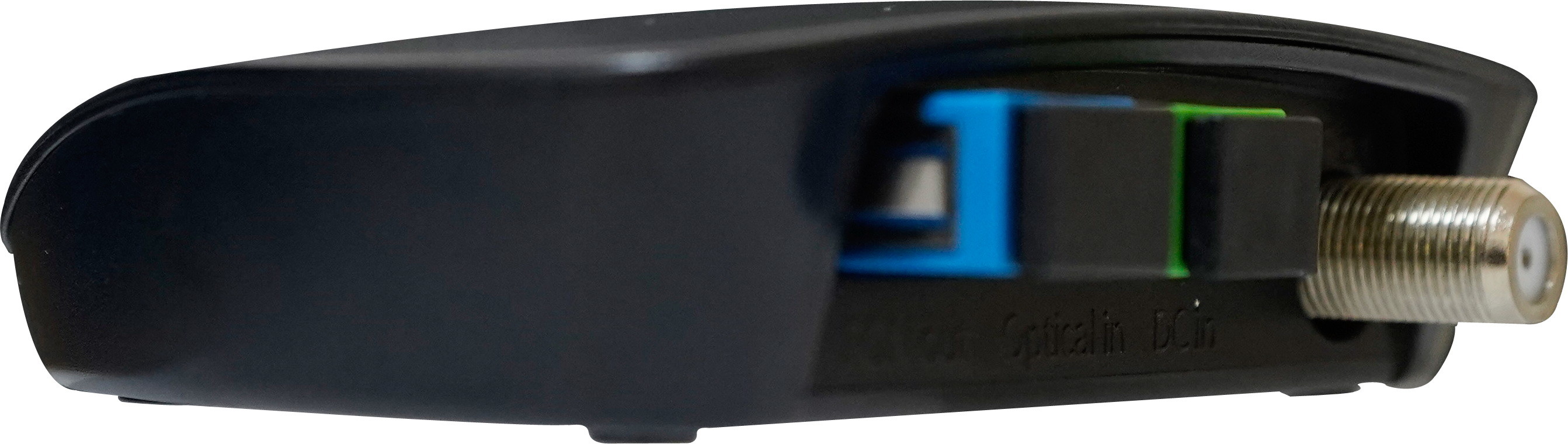

Cheapest FTTH Mini Portable Passive Optical Receiver Singal Fiber Type
Our company information
1. SICHUAN BIHONG ELECTRONIC INFORMATION TECHNOLOGY CO.,LTD was established in 1992. With nearly 30 years of development, it has become a technology company including R & D of integrating information network technology product, relevant devices manufacturing and system integration proposal design.
2.Our company is a high-tech enterprise whose technology center is named "provincial enterprise technology center", "academician expert workstation" and "Network system integration engineering technology research center", with a number of independent intellectual property rights. 3. In recent years, while being specialized, refined and strong in radio and television transmission field and emergency broadcasting field, the company has fully started upgrading its own business to intelligent community operations , including intelligent building, intelligent school, intelligent areas and any intelligent services to be customized design, complete proposal refers to technical instructions, devices and sales service.
This is Cheapest Type in this Sery, It is worthy to have a try.
Product details
| Features | Unit | Parameters |
| Input Frequency | dBm | -10 ~ +2 |
| Return Loss | dB | > 45 |
| Input Wavelength | nm | 1290 ~ 1600 |
| Ports | | SC/APC (OrSC/PC) |
| Fiber Type | | Singal |
| Frequency Range | MHz | 47~1000 |
| Flatness | dB | ±1.5 |
| Nominal Output Level | dBμV | ≥ 54 (when input is -4dBm) |
| Impedance | Ω | 75 |
| RF | | Imperial(Metric as option),Male or Female |
| MER | dB | ≥35(@-4dBm) |
| BER | dB | ＜1.0E-9 |
| Size | mm | 50.5*16.6*16.6 |
why choose us?our advantages
1. One of the famous companies in the industry.
2. With more than 20 years experience on R&D of products.
3. With 30000 square meters workshop and enough capacity.
4. The quality of products has won the praise of domestic and foreign customers.
Product show
Product Tags:
|
|
Single Fiber Mini FTTH Passive Optical Receiver 1290nm-1600nm Images
|
